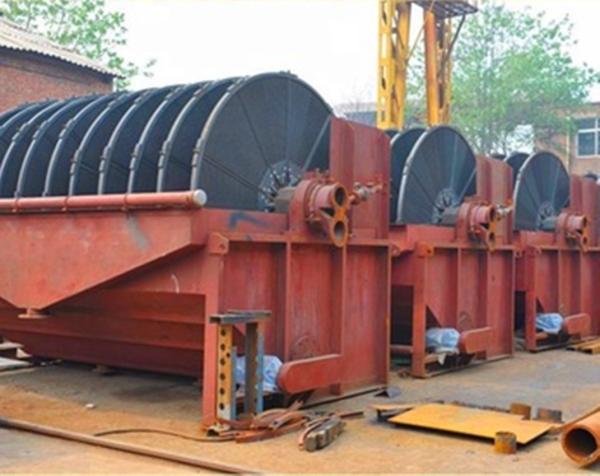

high degree of automation Good filter cake drying performance Disk Filter
The filter machine is a device that uses porous filter media to intercept solid particles in the mixture of liquid and solid particles, and realizes the separation of solid and liquid.
Working principle
Under the action of the pressure difference, the liquid in the suspension passes through the filter medium, and the solid particles are intercepted by the medium, so as to realize the separation of liquid and solid.
Features
The filtrate is clear and transparent
High solid recovery
PLC control, high degree of automation
Good filter cake drying performance
Application
1. Dewatering of mine concentrates and tailings: non-ferrous metal ore, rare metal ore, ferrous metal ore, non-metal ore
2. Chemical industry dehydration: such as dehydration of zinc oxide, lead oxide, zinc sulfide, electrolytic slag, leaching slag, slag, and power plant gypsum
3. Dewatering of stone factory, sand washing field and concrete mixing station;
4. Environmental protection sewage sludge waste acid treatment dehydration
Parameter
| Model area (m2) | filter plate | filter board amount (piece) | tank volume (m3) | total power(KW) | operating power (KW) | overall dimensions (M) | specifications of filter plate |
| TC-1 | 1 | 12 | 0.2 | 4.5 | 3.5 | 1.4×1.4×1.9 | 1 M2/encircle |
| TC-4 | 2 | 24 | 0.8 | 5.5 | 4.5 | 1.7 ×2.2×2.0 | 2 M2/encircle |
| TC-6 | 3 | 36 | 1.1 | 8 | 7 | 2.0×2.2×2.0 | |
| TC-9 | 3 | 36 | 1.9 | 8.5 | 7.5 | 3.1×2.8×2.6 | 3 M2/encircle |
| TC-12 | 4 | 48 | 2.6 | 9 | 8 | 3.4×2.8×2.6 | |
| TC-15 | 5 | 60 | 2.9 | 9 | 8 | 3.7×2.8×2.6 | |
| TC-21 | 7 | 84 | 3.9 | 15.5 | 14.5 | 4.3×2.85×2.6 | |
| TC-24 | 8 | 96 | 4.3 | 15.5 | 14.5 | 4.6×2.85×2.6 | |
| TC-30 | 10 | 120 | 5.2 | 19 | 18 | 5.2×2.85×2.6 | |
| TC-36 | 12 | 144 | 6.1 | 19 | 18 | 5.8×2.85×2.6 | |
| TC-45 | 15 | 180 | 7.4 | 26 | 25 | 6.7×2.85×2.6 | |
| TC-40 | 10 | 120 | 7 | 23 | 22 | 5.2×3.2×3.0 | 4 M2/encircle |
| TC-48 | 12 | 144 | 8.2 | 24 | 23 | 5.8×3.2×3.0 | |
| TC-60 | 15 | 180 | 10 | 39 | 38 | 6.9×3.3×3.0 | |
| TC-80 | 20 | 240 | 14.5 | 39 | 38 | 8.4×3.3×3.0 | |
| TC-40 | 8 | 96 | 5.8 | 26 | 25 | 4.9×3.3×3.1 | 5 M2/encircle |
| TC-45 | 9 | 108 | 6 | 26 | 25 | 5.2×3.3×3.1 | |
| TC-50 | 10 | 120 | 6.9 | 26 | 25 | 5.5×3.3×3.1 | |
| TC-55 | 11 | 132 | 7.5 | 33 | 32 | 5.8×3.3×3.1 | |
| TC-60 | 12 | 144 | 8.1 | 33 | 32 | 6.1×3.3×3.1 | |
| TC-100 | 20 | 240 | 12.7 | 47 | 46 | 8.5×3.3×3.1 | |
| TC-78 | 13 | 156 | 12.7 | 39 | 38 | 6.4×3.7×3.3 | 6 M2/encircle |
| TC-96 | 16 | 192 | 15.1 | 57 | 56 | 7.3×3.7×3.3 | |
| TC-120 | 20 | 240 | 18.3 | 57 | 56 | 8.5×3.7×3.3 | |
| TC-96 | 8 | 120 | 25 | 90 | 80 | 6.73×5.9×4.78 | 12 M2/encircle |
| TC-120 | 10 | 150 | 30 | 110 | 100 | 7.53×5.9×4.78 | |
| TC-144 | 12 | 180 | 35 | 110 | 100 | 8.57×5.9×4.78 | |
| TC-168 | 14 | 210 | 40 | 110 | 100 | 9.37×5.9×4.78 | |
| TC-192 | 16 | 240 | 45 | 130 | 120 | 10.2×5.9×4.78 | |
