Ore Dressing Equipment Shaking Table Mainly Used For Sorting In 2-0.02mm Ore
1. Scope of application of ore dressing equipment shaking table
The dressing equipment is mainly used for sorting in 2-0.02 mm ore and slime level of tungsten, tin, tantalum, niobium, iron, manganese, chromium, titanium, bismuth, lead, gold and other non-ferrous, black rare metal minerals, sorting 4-0.02 mm pyrite; After changing the form of bed strip appropriately, the final coal and slime are selected; And separate other mixed materials with sufficient specific gravity difference and suitable particle size composition.
2. Working principle of ore dressing equipment shaking table
Beneficiation process is conducted in with a copy of the tilting table surface, mineral grain group from the Angle of feeder trough into bed surface, and at the same time by lateral flushing water supply for the sink, ore grain in gravity, lateral flow momentum, asymmetry of bed surface for reciprocating motion under the action of the inertia and friction, according to the proportion and granularity theory, then make the longitudinal motion along the bed surface and lateral movement along the inclined bed surface. Therefore, the specific gravity and particle size of different ore particles along their respective movement direction gradually from side A to side B fan-shaped flow, respectively from the concentrate end and tailings side of different areas discharged, and finally divided into concentrates, middling and tailings.
3. Product parameters of ore dressing equipment shaking table
| | Coarse sand table | Fine sand table | Slime (slotted) shaking table | Fine mud shaking table |
| Feed size/mm | 2~0.5 | 0.5~0.074 | 0.07~0.019 | 0.019~0.0037 |
| Ore feed (tin ore)(t/d) | 20~35 | 10~20 | 3~10 | 5~15 |
| Mineral surface size /mm | 4395×1825 | 4395×1825 | 4395×1825 | 4395×1825 |
| Mineral surface area /m2 | 7.4 | 7.4 | 7.4 | 7.4 |
| Stroke Length/mm | 16~22 | 11~16 | 8~11 | 5~7 |
| Times of stroke/min-1 | 270~290 | 290~320 | 320~360 | 480~520 |
| Transverse slope of table surface(°) | 2.5~4.5 | 1.5~3.5 | 1~2 | 1~1.15 |
| Power /Kw | 1.1 | 1.1 | 1.1 | 1.1 |
| Dimensions /mm | 5446×1825×1212 | 5446×1825×1227 | 5446×1825×1203 | 5446×2338×1203 |
| Total weight/Kg | 1015 | 1030 | 1065 | 1065 |

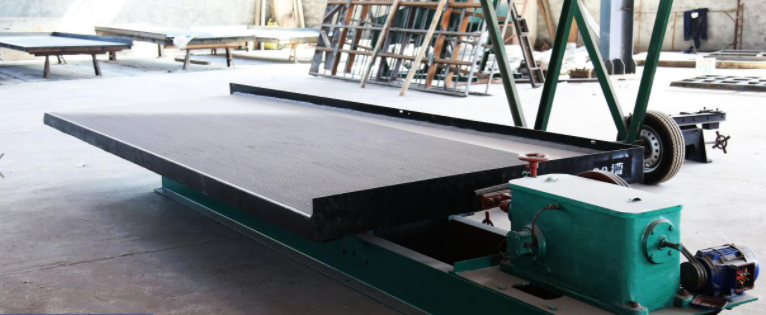

Ore Dressing Equipment Shaking Table Mainly Used For Sorting In 2-0.02mm Ore
Ore Dressing Equipment Shaking Table Mainly Used For Sorting In 2-0.02mm Ore
Ore Dressing Equipment Shaking Table Mainly Used For Sorting In 2-0.02mm Ore
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
