Product Application
Vertical spiral mill is mainly used in the mining industry such as the crushing and grinding of metal ores, the crushing and deep processing of non-metallic ores, the comprehensive utilization of low-grade minerals, the extraction of useful elements from tailings, powder metallurgy, mechanical alloying, metallurgical raw material processing, metallurgical waste slag utilization, cemented carbide production and other industrial industries. It is a kind of ultra-fine grinding equipment that grinds ores or other materials of a certain particle size into finer particles.
Product Features
Vertical spiral mill uses stirring to achieve the purpose of grinding and refining particles. Under the stirring of the agitator, the medium balls and the ore materials in the stirring tank perform multi-dimensional circulation and rotational motions, and the gravity generated by the medium balls and the ore materials and the centrifugal force generated by the rotation are comprehensively utilized to produce collision, friction, and shearing between the medium balls, between the ore materials, and between the medium balls and the ore materials. Under the action of momentum and impulse, the ore materials are deformed, broken, and finally crushed to achieve the ideal particle size. Compared with traditional ball mills at the same power, it saves 30% to 50% energy. The smaller the product particle size, the more obvious the energy saving effect. The maximum feed particle size can reach 6mm, and the minimum discharge particle size can reach 0.02mm.
Product advantages
1. The vertical spiral stirring mill can be used for grinding and leaching, which can economically extract gold with small investment, low cost and high gold recovery rate;
2. It is suitable for secondary grinding, fine grinding of sulfide ores and utilization of tailings, and can economically grind the ore to -400 mesh greater than 90%-95%;
3. It can perform micro-fine grinding and can grind the ore to less than -10μm.

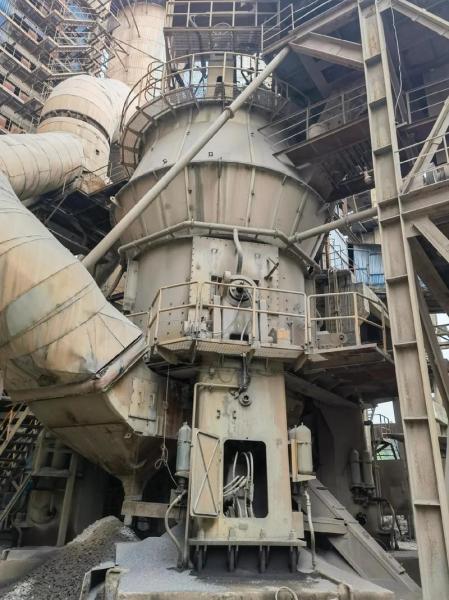

Product display
Product Parameter
| Model | Power(kw) | Max. steel ball capacity(t) | Weight of the mill(t) | Mounting dimension(mm×mm) | Height(mm) |
| MLL1600 | 1600 | 182 | 200 | 4840×5493 | 15988 |
| MLL1250 | 1250 | 156 | 160 | 3870×3663 | 14635 |
| MLL1120 | 1120 | 127 | 140 | 4570×4363 | 14347 |
| MLL950 | 950 | 91 | 105 | 3870×3663 | 13604 |
| MLL750 | 750 | 87 | 95 | 3520×3473 | 13129 |
| MLL355 | 355 | 50 | 40 | 2628×2640 | 10038 |
