Customized 42CrMo Alloy Steel Hardened Gear Ball Mill Pinion Ball Mill

  • 1
  • 2

Brand Name : ZTIC

Model Number : Mill Girth Gear

Certification : ISO\CE

Place of Origin : Henan China

MOQ : ≥1 Tons

Price : negotiated

Payment Terms : L/C, T/T

Packaging Details : Standard packing or according to customer's requirement

Shape : Ring Gear

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Energy & Mining

Tooth Profile : Helical Gear

Material : 42CrMo

Processing : Forging

Girth Gear : Rotary kiln Ring Gear and ball mill Ring Gear

Weight : Max 120 MT single piece

Maximum module : 45 by hob

Port : Qingdao China

Condition : New

Contact Now

Customized 42CrMo Alloy Steel Hardened Gear Ball Mill Pinion Ball Mill

ZTIC Pinion Gears offered find extensive application in Sponge Iron Plants that have running capacities of -50TPD, 100TPD, 300TPD, 350TPD, 500TPD. Further, these also provide functionality as integral pinion shaft for cement plants/ball mills and as pinion & pinion assemblies for Phosphate mining plants, Alumina, Kaolin-Bentonite plants and others. Further, we can also custom design these in finish specifications as demanded by the customers.

Pinion for:-Sponge iron plant-50TPD, 100TPD,300TPD,350TPD,500TPDIntegral pinion shaft for cement plant or ball millsPinion & pinion assemblies for Alumina, kaolin-bentonite plants, phosphate mining plantMain Type of pinion applications as given below for the all above mentioned plants:Kiln PinionCooler pinionPinion shaftPinion assembled with shaft, bearings, plummer blocksIntegral pinion shaft upto 3 mtr total lentgh.

Product Parameters

42CRMO STEEL DATA CHEMICAL LIST
C : 0.38-0.45%
Si: 0.17-0.37%
Mn: 0.50-0.80%
S : Allow residual content <0.035%
P : Allow residual content <0.035%
Cr: 0.90-1.20%
Ni: Allow residual content <0.030% Cu: Allow residual content <0.030%
Mo: 0.15-0.25%
MECHANICAL DATA
Tensile Strength σb (MPa): >1080(110)
Yield point σs (MPa): >930(95)
Elongation σ5 (%): >12
Reduction of area ψ (%): >45 Akv (J): Impact absorbing energy Akv(J): >63
Impact toughness value αkv (J/cm2): >78(8)
Hardness: <217HB
Sample size: The blank size of the sample is 25mm
PHYSICAL DATA
Critical point temperature (approximate value): Ac1=730ºC, Ac3=800ºC, Ms=310ºC
Linear expansion coefficient: temperature: 20~100ºC/20~200ºC/20~300ºC /20 ~400ºC/20~500ºC /20~600ºC
linear expansivity: 11.1x10K/12.1x10K/12.9x10K/13.5x10K/13.9x10K14.1x10K

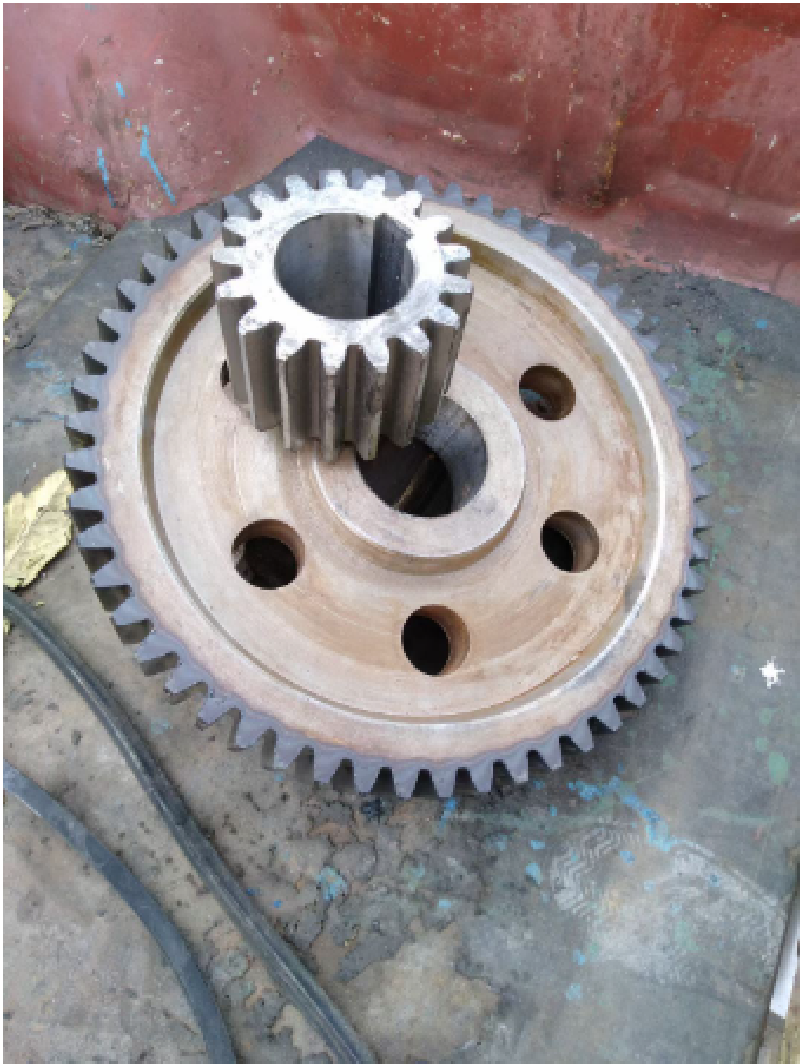

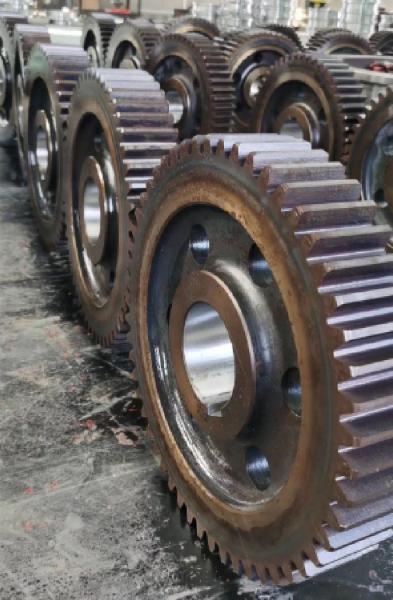

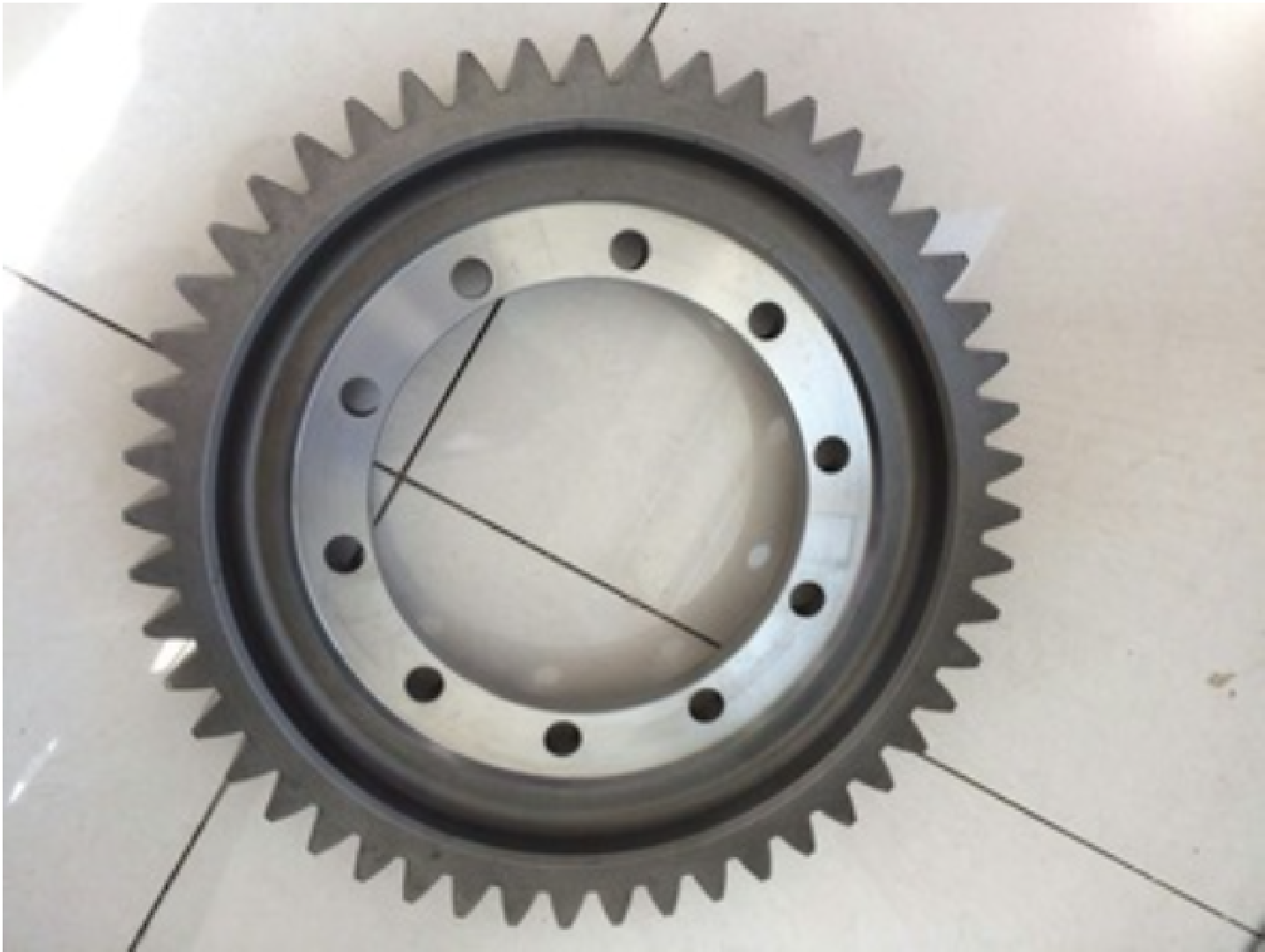

Product Display

Customized 42CrMo Alloy Steel Hardened Gear Ball Mill Pinion Ball MillCustomized 42CrMo Alloy Steel Hardened Gear Ball Mill Pinion Ball Mill

Q&A

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
