High Alumina Refractory Bricks With Excellent Anti-Spalling And Wear Resistance

Brand Name : ZTIC

Model Number : Fire brick

Certification : ISO\CE

Place of Origin : Henan China

MOQ : ≥1 Tons

Price : negotiated

Payment Terms : L/C, T/T

Supply Ability : 10.0 Ton/Tons per Month

Packaging Details : Standard packing

Shape : Brick

Material : clay

Fe2O3 : ≤3%

Refractoriness : ≥1690 °C

Bulk density : 1.9-2.0g/cm3

Unit weight (230*114*65mm) : ≥3.35KGS

Apparent porosity : ≤26%

Cold crushing strength : ≥20Mpa

Size : Customized Size

Type : CITIC HIC Machine Parts

Port : Qingdao China

Certificate : ISO9001

Contact Now

High Alumina Refractory Bricks With Excellent Anti-Spalling And Wear Resistance

Product presentation Of CITIC HIC Machine Parts

Refractory materials are generally divided into two types, namely amorphous refractory materials and shaped refractory materials. Amorphous refractory materials, also known as castables, are mixed powder particles composed of multiple aggregates or aggregates and one or more binders. When used, they must be mixed with one or more liquids to be evenly mixed and have strong fluidity. Shaped refractory materials generally refer to refractory bricks, which have standard shapes and can also be temporarily processed when building and cutting according to needs.

Product features Of CITIC HIC Machine Parts

One of the important working properties of high alumina refractory bricks is the structural strength at high temperature, which is usually evaluated by the load softening deformation temperature. Its high temperature creep is also measured to reflect its high temperature structural strength. The test results show that the load softening temperature increases with the increase of Al2O3 content.

The public properties of refractory raw materials mainly depend on the mineral composition and particle composition of the raw materials, and are closely related to the manufacturing process of refractory materials. Such properties mainly include particle size and particle size distribution, fineness and specific surface area, plasticity and bonding, drying shrinkage and firing shrinkage, sintering temperature and sintering range, etc.

Examples Applications of Rotary kiln Refractory bricks manufacturer
1. Carbon bake furnace in the aluminium industry
2. Preheat zones and cyclones of rotary cement kilns
3. Primary reformers in fertilizer production
4. Insulation for glass tanks
5. Coke ovens
6. Blast furnace
7. Reheating furnace
8. Suspended roofs
9. Lime kilns
10. Domestic fireplaces, barbeques and outdoor ovens.

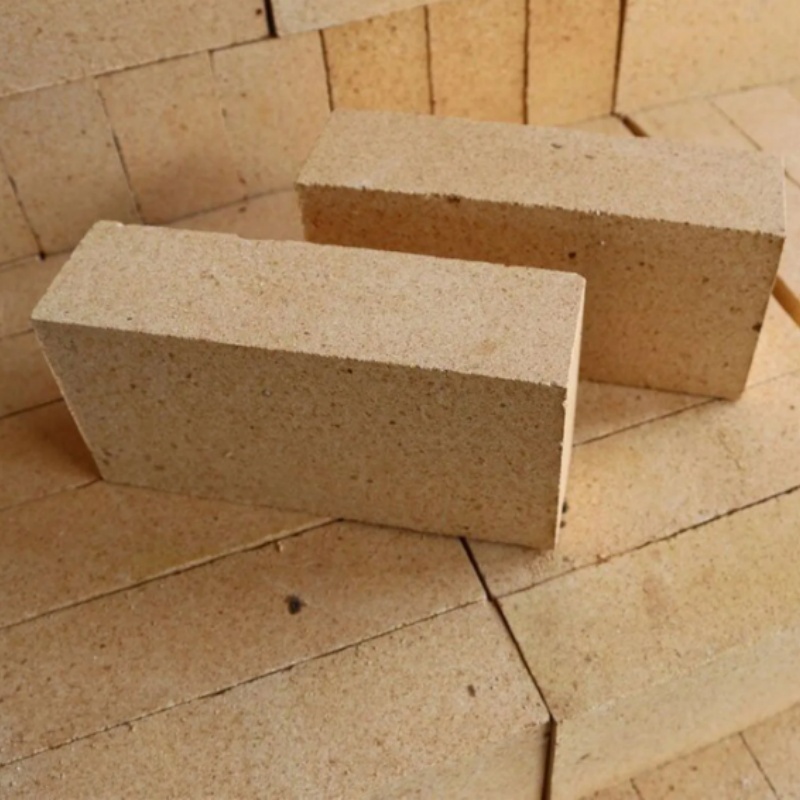

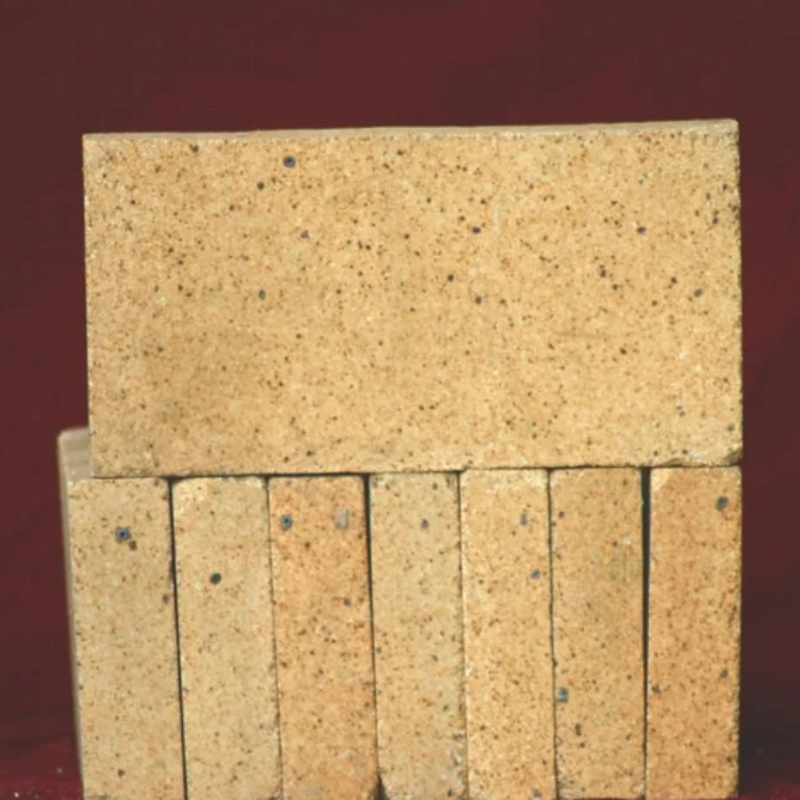

Product Display Of CITIC HIC Machine Parts

High Alumina Refractory Bricks With Excellent Anti-Spalling And Wear ResistanceHigh Alumina Refractory Bricks With Excellent Anti-Spalling And Wear Resistance

Product Parameter Of CITIC HIC Machine Parts

SK series SK30 SK32 SK34 SK35
Al2O3 30%-35% 35%-38% 38%-42% 42%-50%
Item 33% Al2O3 38% Al2O3 42% Al2O3 48% Al2O3
fire clay brick fire clay brick fire clay brick fire clay brick
Al2O3 33% 38% 42% 48%
Fe2O3/% ≤3 ≤3 ≤3 ≤2.5
Refractoriness ≥1690 °C ≥1730 °C ≥1750 °C ≥1750 °C
Bulk density/g/cm3 1.9-2.0 2.0-2.1 2.1-2.18 2.15-2.3
Unit weight (230*114*65mm) ≥3.35KGS ≥3.55KGS 3.65KGS ≥3.75KGS
Apparent porosity/% ≤26 ≤24 ≤24 ≤22
Cold crushing strength ≥20Mpa ≥25Mpa ≥30Mpa ≥35Mpa
Refractoriness under load ≥1250 °C ≥1300 °C ≥1350 °C ≥1420 °C
Reheating Linear Change/% 0~ -0.5 0~ -0.3 0~ -0.4 +0.1~ -0.4
(1350°C,2h) (1350°C,2h) (1450°C,2h) (1450°C,2h)
