Heat Treatment Process Cast Steel Ball Mill Large Gear Customized For Mining

Name: Heat Treatment Process Cast Steel Ball Mill Large Gear Customized For Mining
Brand: ZTIC
Price: 1 USD

China Heat Treatment Process Cast Steel Ball Mill Large Gear Customized For Mining factory

Brand Name : ZTIC

Model Number : Rotary kiln ring gear

Certification : ISO\CE

Place of Origin : Henan China

MOQ : 1set

Price : negotiated

Payment Terms : L/C, T/T

Supply Ability : 2000 Set/Sets per Year

Packaging Details : Standard packing or according to customer's requirement

helical Gear : Rotary kiln ring gear and ball mill helical gear

Diameter : Min 100 mm to16000 mm Gear

Weight : Max 120 MT single piece

Standards/Certificates : UNI EN ISO, AWS , ASTM ,ASME , DIN

ball mill helical gear : applied in the cement and minerals industries

Gear Cutting Machines : 16m CNC Hobbing Machine

Port : Qingdao China

Material : Steel

Contact Now

Heat Treatment Process Cast Steel Ball Mill Large Gear Customized For Mining

Product Introduction

Girth Gears offered find extensive application in different industry sectors including in sponge iron plants, steel & cement industry, mining industry, wind mills as well as in other industry sectors. These are made available in module range of 10 Module to 70 Module and in minimum diameters of 100 mm to 15000 mm. Further, these comprise maximum weight of 70 MT single pieces. Here the range of hardened & ground gear boxes/gears comprise Worm gear boxes, Helical / Double helical gears/gearboxes.

Module Range: 10 Module to 70 Module.

Diameter : Min 100 mm to16000 mm.

Weight : Max 120 MT single piece.

Hardened & Ground Gear Boxes/Gears:

Worm gear boxes
Helical / Double helical gears/gearboxes
Helical-Bevel gearboxes
Planetary Gearboxes
Hardened & Ground Helical- bevel gears & Spiral-bevels gears/gearboxes.
Rack & Pinions

Product Parameters

Specification	Machining Scope
Size	OD Max 16m
	One Piece of Gear: OD Max 13m
	Assemble Gear: According to drawings
Hobbing Modulus	10-60
Milling Modulus	Up to 120
Spiral Modulus	1-15
Accuracy Grade	Milling: 6 grade
Accuracy Grade	Hobbing: 8 grade
Material	Alloy steel: 42CrMo4, 34CrNiMo6 etc.
	Carbon steel: C45E, 1030
	Carburizing steel
	Quenched and tempered steel
Heat treatment	Quenching&Tempering, Surface Quenching

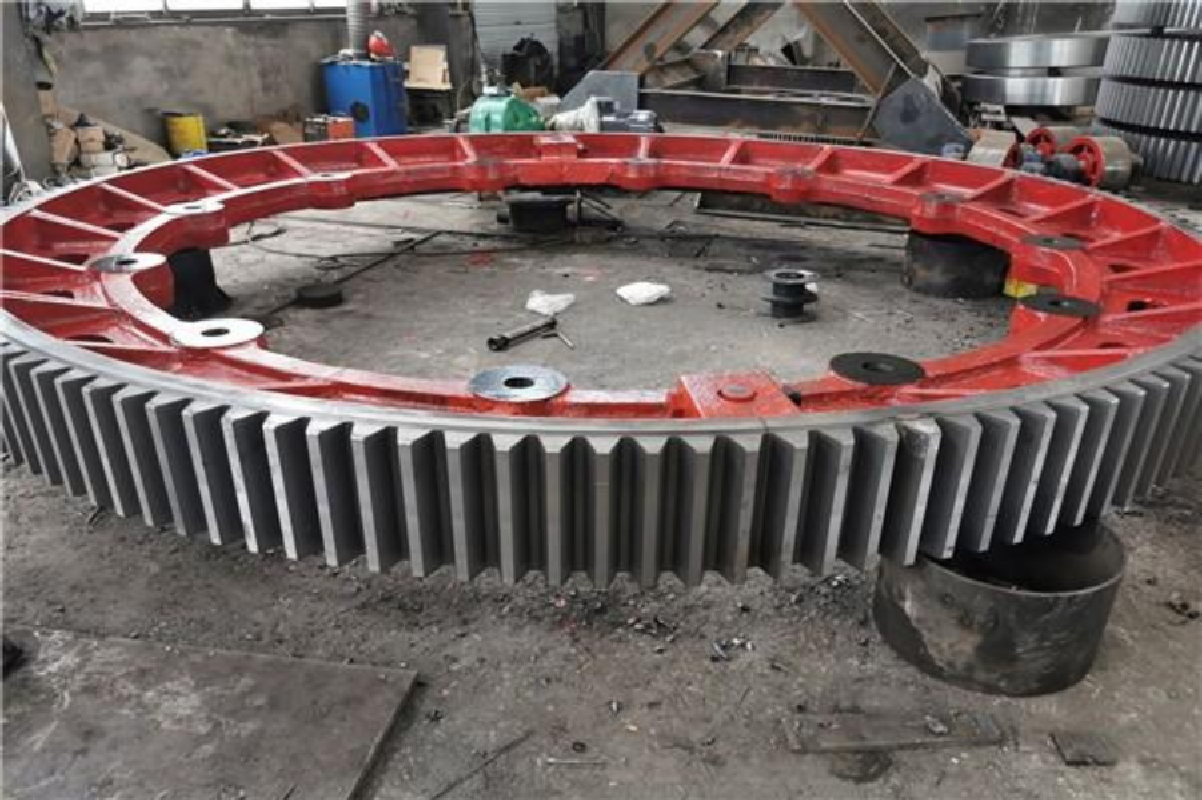

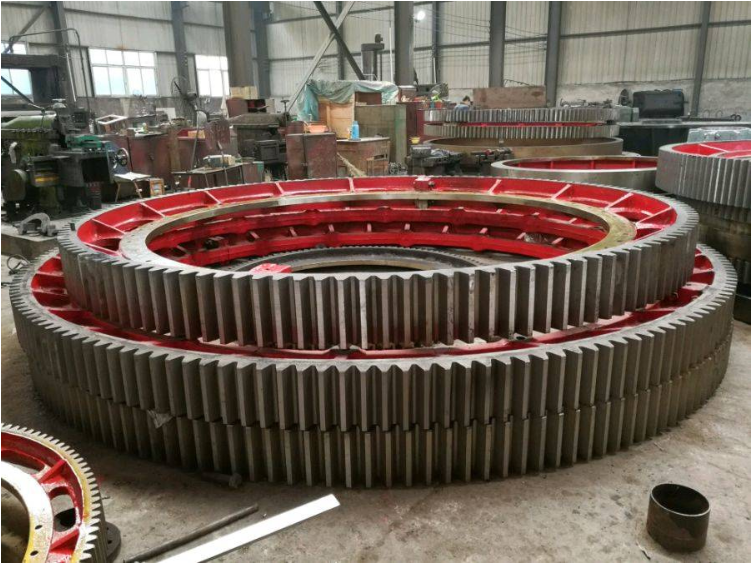

Product Display

Heat Treatment Process Cast Steel Ball Mill Large Gear Customized For Mining

Heat Treatment Process Cast Steel Ball Mill Large Gear Customized For Mining Images
