Vertical Spiral Mill With Integrated Electromechanical And Hydraulic Control
Vertical spiral mill, also known as tower mill or vertical spiral stirring mill, is a high-efficiency ultrafine grinding equipment.
Working Principle
The cylinder is filled with a certain amount of grinding media, the spiral agitator rotates slowly, and the grinding media and materials make a multi-dimensional circulation and rotational motion in the cylinder as a whole. The materials are effectively crushed under the friction, extrusion, shear and impact force generated by the weight pressure of the grinding media and the rotation.
Technical features
- The vertical spiral mill is mainly composed of a transmission part, a frame part, a spiral part, an inspection door, a coarse grading device, a spiral installation tool, a motor, a reducer, etc. It has a simple structure and is easy to maintain.
- The frame part is lined with wear-resistant and corrosion-resistant rubber, and a grid lining or a magnetic lining is installed to protect the frame and extend its service life.
- The installation period is short, and the main installation work can generally be completed in 2 to 4 weeks.
- The overall force of the mill is balanced, the foundation has no additional load, and the foundation design is simple.
- There is no internal impact during operation, and the grinding medium loss is small.
- The vertical spiral mill is divided into two feeding methods: upper feeding and lower feeding, which can be freely selected according to the process conditions.
- It adopts PLC control, has sound and light alarm, fault diagnosis and other functions, and realizes the integration of electromechanical and hydraulic control.
Ore grinding mill technical parameters
| Model | Power(kW) | Maximum amount of steel balls(t) | Approximate net weight of the mill(t) | Mill installation size(mm×mm) | Mill height(mm) |
| MLL1600 | 1600 | 182 | 200 | 4840×5493 | 15988 |
| MLL1250 | 1250 | 156 | 160 | 3870×3663 | 14635 |
| MLL1120 | 1120 | 127 | 140 | 4570×4363 | 14347 |
| MLL950 | 950 | 91 | 105 | 3870×3663 | 13604 |
| MLL750 | 750 | 87 | 95 | 3520×3473 | 13129 |
| MLL355 | 355 | 50 | 40 | 2628×2640 | 10038 |

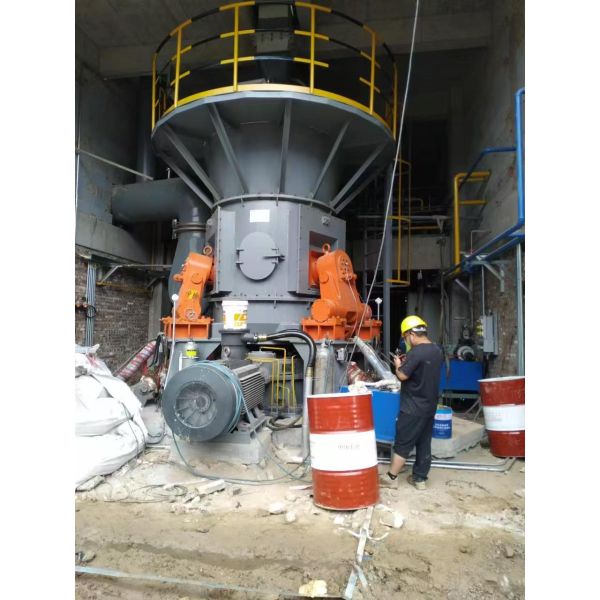

Product Display Of Ore grinding mill
Ore grinding mill
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
