automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel

Name: automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel
Brand: ZTIC
Price: 1 USD

China automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel factory

Brand Name : ZTIC

Model Number : Ore Dressing Equipment

Certification : ISO\CE

Place of Origin : Henan China

MOQ : 1set

Price : negotiated

Packaging Details : Standard packing or according to customer's requirement

Condition : New

Warranty : 12 months

Belt Width : 500mm

Capacity : 3-5.2m³hr

Port : Qingdao China

Classification : Ore Dressing Equipment

Cake Moisture : 65-84%

Contact Now

Automation Drum Concentrated Belt Fiter Press(Stainless Steel Or Carbon Steel)

The belt drum thickener and dewatering machine is a continuous treatment device that combines sludge thickening and dewatering functions. The main structure can be constructed of stainless steel or carbon steel.

Application and Selection

Applicable Industries: Municipal sewage treatment plants, sand washing wastewater from sand making plants, papermaking, printing and dyeing, chemical industry, mining, and other industries that treat high-suspended-matter wastewater.

Product Parameters of Ore Dressing Equipment

Technical Data Of Drum concentrated belt fiter press(Stainless steel or carbon steel)

Model	Belt Width(mm)	Capacity(m3/hr) Feed concentration (Solid content 0.5-1%)	Dry Solid(kg/hr)	Cake Moisture(%)	Power (kw)			S.STray	Reference Dimensions(mm)			Foundation Dimensions L2×W1(mm)	Weight(kgs)
					Power of Driving Motor	Mixing Power	Drum concentrator motor power

										W	H
DNY500	500	3-5.2	45-78	65-84	0.75	0.37	00.37	with	2600	1050	2175	2100*836	800

DNY750	750	4.5-7.5	68-113	65-84	0.75	0.37	0.37	with	2600	1300	2175	2100*1086	1000
DNY1000	1000	6-10.5	98-158	65-84	0.75	0.37	0.37	with	2600	1550	2270	2100*1336	1200
DNY1250	1250	7-12.5	113-188	65-84	0.7	0.37	0.37	with	2600	1800	2270	2100*1586	1400
DNY1500	1500	9.5-15	143-240	65-84	0.75	0.37	0.37	with	2600	2050	2270	2100*1836	1800

DNY1500L	1500	12-20.5	180-308	65-84	0.75	0.55	0.55	with	2600	2300	2510	2455*1866	2200
DNY1750	1750	15-24.5	225-368	65-84	1.1	0.55	0.55	without	3190	2300	2510	2455*2096	2400
DNY2000	2000	18-30	270-450	65-84	1.5	0.75	0.75	without	3190	2550	2510	2455*2346	2800

DNY2500	2500	25-35	300-550	65-84	2.2	0.55*2	0.55*2	without	4300	3300	2850	3550*2846	3200
DNY3000	3000	30-45	360-675	65-84	3	0.75*2	0.75*2	without	4300	3550	2850	3550*3346	3600
Remark		Decided by the Sludge type						Can be customized	We will supply with drawings

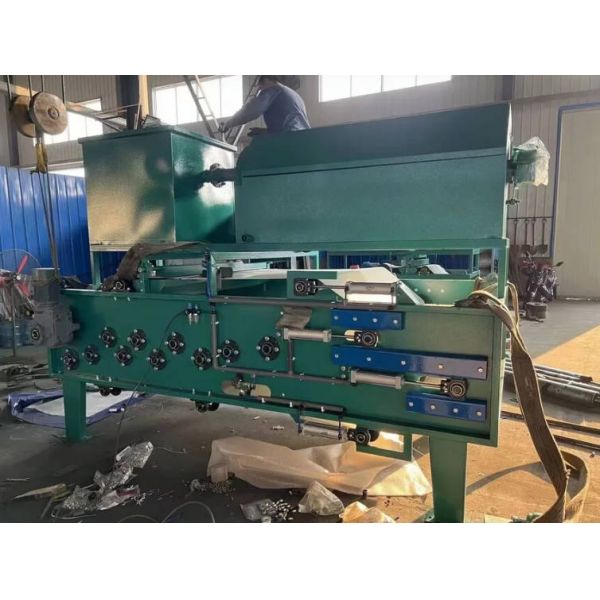

Product Display of Ore Dressing Equipment

automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel

Ore Dressing Equipment

automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel Images
